20 September 2023

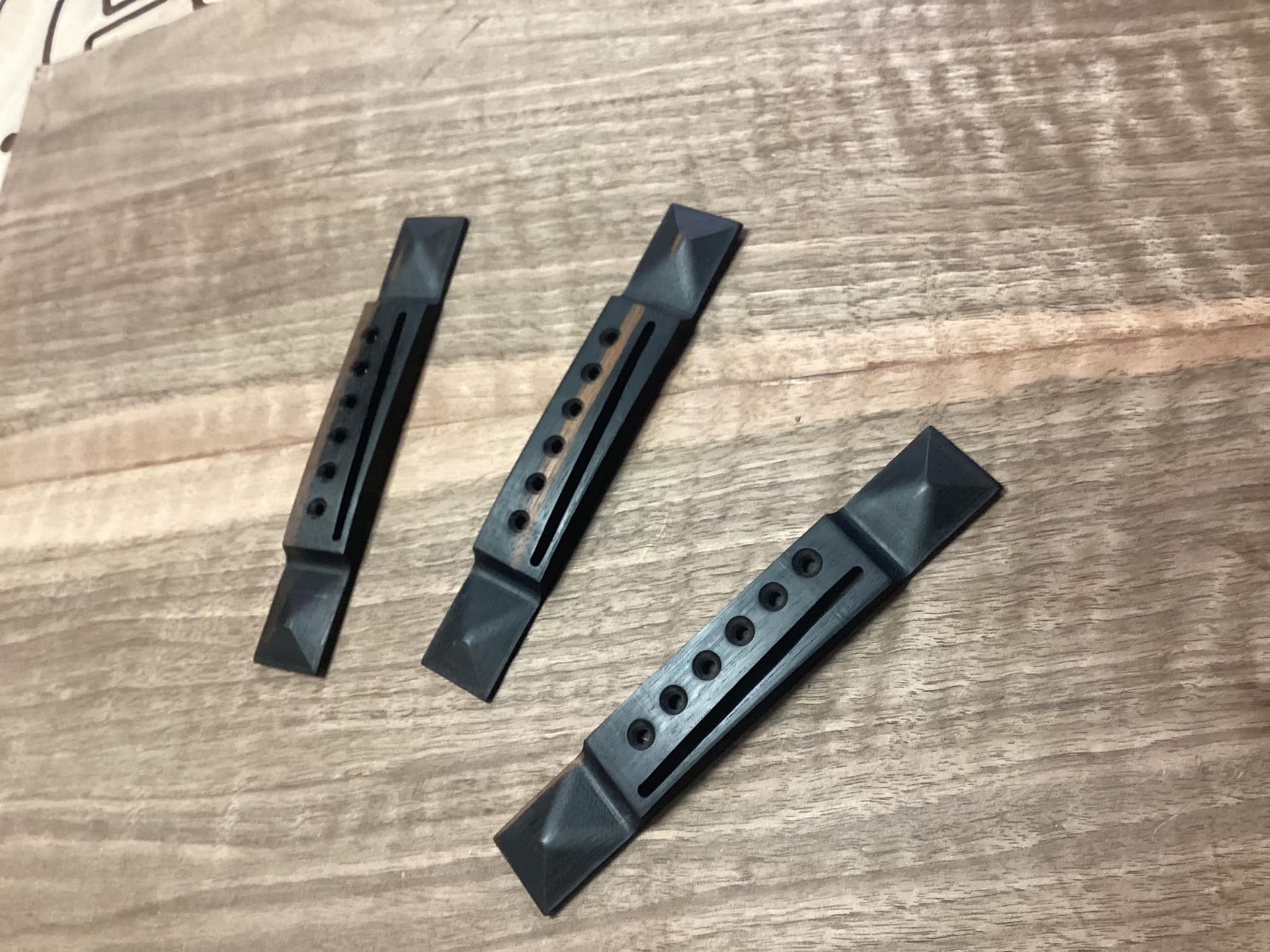

NEW Vintage Pyramid Bridge

In addition to our traditional belly bridge and Radius Dish design bridge, I am please to add a new product.
This traditional pyramid bridge is based on a vintage Martin 1930s design and specs.
The bridge has a radiused top. The bridge holes follow the angle of the saddle and this bridge looks super cool.
Standard specs that the bridge will be offered in are:
String spacing - 58.7mm
Saddle length - 73mm
Saddle width - 3.2mm
Dimensions - 6x1"
Height - 8.5 and 9mm
Some of these specs will be customisable eg. length and width of the saddle, string spacing and also the bridge holes can be made flat if needed.

I am sure this bridge will make life easier for some guitar repairers and also a luthiers who want to save some time and use this accurately read-made pyramid bridge.
by Ned Katic 13 September 2023

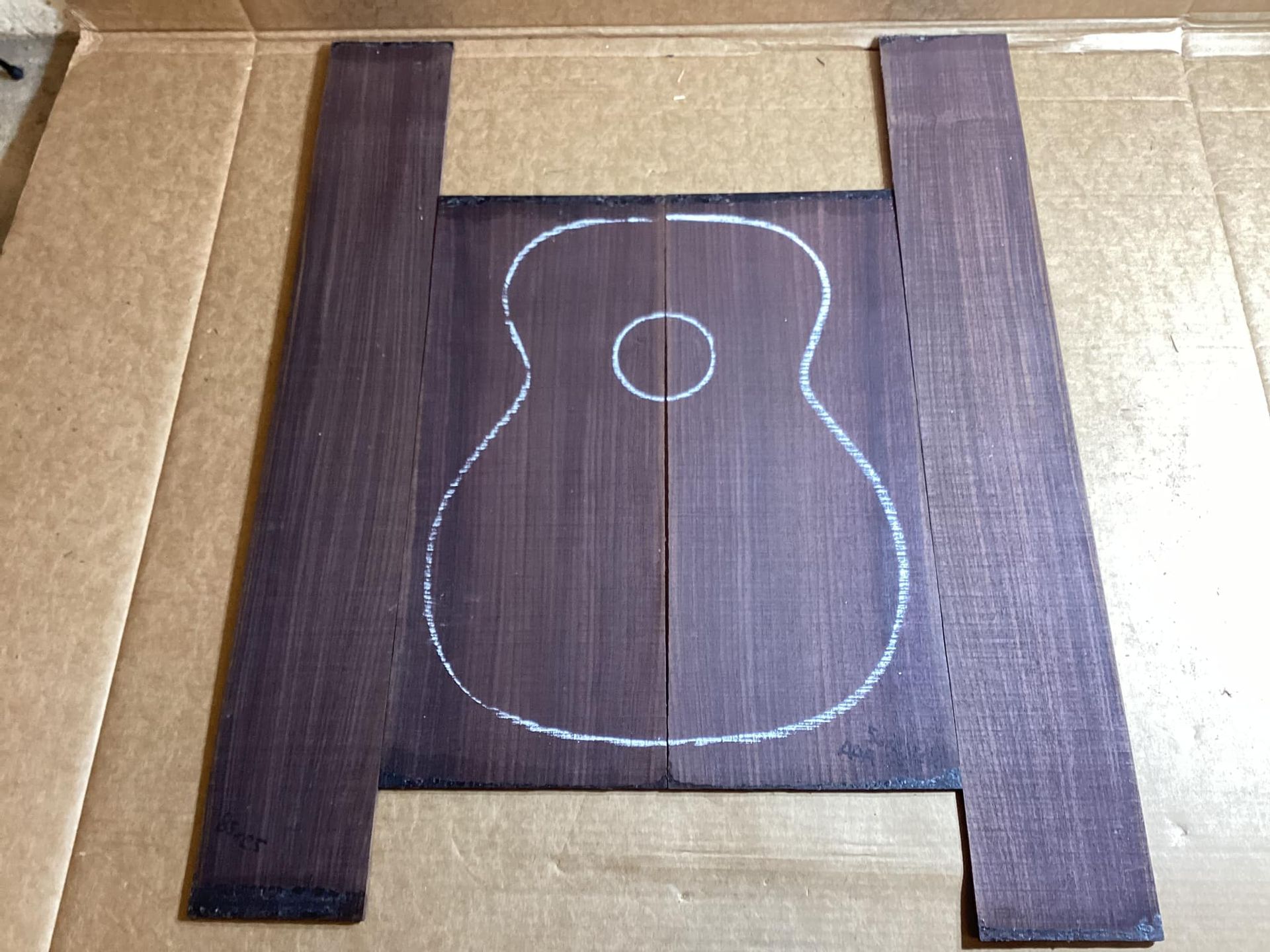

Dalbergia latifolia imported from a partner business from India which was responsibly sourced through the government auctions. Expertly prepared and seasoned. Dimensions for guitar fretboards: These are standard size and will fit western, classical or electric guitar. 530x70x9mm Dimensions for bass fretboards: 4 string - 720 x 75 x 9 mm 5 string - 720 x 85 x 9 mm 6 string - 720 x 95 x 9 mm Dimensions for back and sides CLASSICAL: Back - 550x200mm Sides - 800x110mm Dimensions for back and sides WESTERN: Back - 550x220mm Sides - 850x120mm Dimensions for headplate: 220x90-95x3.5mm Dimensions for bridge blanks: 200x52x15mm These will fit standard classical and western size bridges. Indian rosewood grading explained. Indian rosewood is one of the most stunning and desirable materials used for musical instruments fretboards and this is due to its density and appearance. The fretboard along with the neck, plays an important part in structural integrity of the instrument and also important factor in how the instrument will respond tonally. We are grading our fretboards taking into account those two factors. Colour range and intensity and general appearance. Higher grades will have a range of dark brown, and/or black and/or purple colours across the blank. Those fretboards will be more pleasing to look at and they will have a higher ‘wow’ factor. Grain straightness and cut. Higher grades Indian rosewood fretboards will be quartersawn or nearly quartersawn with the grain orientation being 80-90 degrees with the face of the blank and running straight and uninterrupted across the board. A grade - not perfectly quartersawn. The grain might be curved and wide and not running perfectly straight across the fretboard. For example one end of the fretboard might be quartersawn and the grain might be ending slab sawn on the other end. These fretboards might have a knot. It will have a lesser amount of the colour range and intensity. AA grade - these fretboards will be quartersawn or near with the grain running across the board and covering the most of the material. The grain will be wider than AAA and might be slightly curved. These fretboards might be a downgraded AAA features due to a knot. The AA grade fretboards will have an excellent range of colours and intensity and will have a great ‘wow’ factor. AAA grade - the AAA grade will be the most scarce and the most difficult to yield from a log. I reckon 20-30% of the log will be suitable for this grade. These fretboards will be quartersawn 80-90 degrees and will have the grain running straight across the whole board. The grain will be narrower than the AA grade. The AAA grades will have an excellent ‘wow’ factor. The colour range and intensity of these fretboards will be the most stunning. Pinholes/defects - the fretboards with pinholes and defects won’t be sold under these 3 grades and if sold, they will be advertised as such. B grade - these fretboards will be something that perhaps shouldn't be used on guitars and they will likely be used to make a bookmatched headplates as they might have a unique grain pattern when resawed and bookmatched. If offered for sale, the B grade will be heavily discounted. Pinholes/defects - the fretboards with pinholes and defects won’t be sold under these 3 grades and if sold, they will be advertised as such. Mastergrade - when dealing with large amount of Indian rosewood fretboards, we will come across some superb materials. These will be very rare and the most unique and will be advertised as Mastergrade. - when dealing with large amount of Indian rosewood fretboards, we will come across some superb materials. These will be very rare and the most unique and will be advertised as Mastergrade.
by Ned Katic 9 September 2023
I have been chatting to a British company who is interested in collaboration. The truss rods are something that I don't have in stock at the moment. I was thinking many times going the China way but never did and I am glad. I am personally very excited about this. All material for making the truss rods is sourced from the British suppliers. The truss rods will be available in single action and dual action. The best of all any custom lentghs will be no extra charge. Bass truss rods will be available. If you are using a non standard truss rod length and struggling to source, your problems are solved now. :D It would be good to let me know what non standard lenths you are using so I can make sure they are in stock and can be dispathed quickly.
