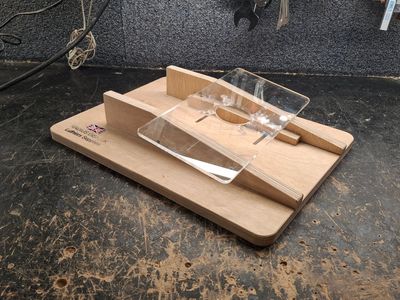

Fretboard radius jig with interchangeable base, pre-drilled holes for Makita RT0700, DeWalt D26200 and Bosch GKF600.
Made with CNC for 100% accuracy.
This jig provides smooth and precise operation.
Made with marine plywood.
Some examples of commonly used radii for guitar fretboards.
Bourgeois 14"
Faith 16"
Fender modern 9.5"
Fender vintage 7.25"
Furch 15.75"
Gibson most 10-12"
Gibson vintage LP 12"
Godin 16"
Martin 16"
Maton 12"
PRS most 10-11.5"
Taylor most 15"
How to use ?

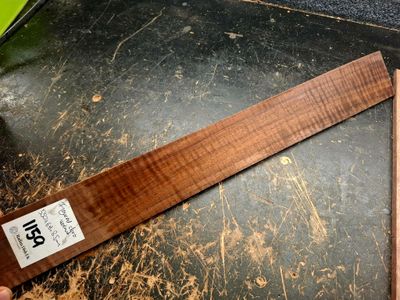

You will need a piece of scrap-wood which is same width as opening on the fretboard radius jig (144mm).
Please examine the photos. I had used x2 pieces of 18mm thick plywood which I screwed together and pass with roundover bit the long edges, then I had placed those 2 pieces of plywood on bigger flat board. This will give you 36mm height which is designed to be used with opening on the jig and can accept fretboards 6-8mm.
Place your fretboard blank on, using the strong double-sided tape to fix, align centreline of your fretboard blank with centreline on the fretboard radius jig and move the jig from side to side or along the fretboard. (moving the jig along the fretboard gives more consistency and better result).
Each radii will come with a set of legs, which has slots where the radiused part of the jig is inserted. These are intended for a permanent fixture by using some superglue and sitting them in the slots on the legs.
This listing is for one jig with a choice of one fretboard radius, please choose from the drop down menu.
If you require an additional radii, please click here https://www.radiusdishuk.com/home/Radius-for-fretboard-radius-jig-p369337133e.
Important! The base of the jig is not secured on the arched piece of the jig and it's resting on bearings only. Keep this in mind when using the jig as serious injury may occur if not used with caution. Hold the base/router from the top and keep fingers away from under the base.
